MICROSET Power Supply

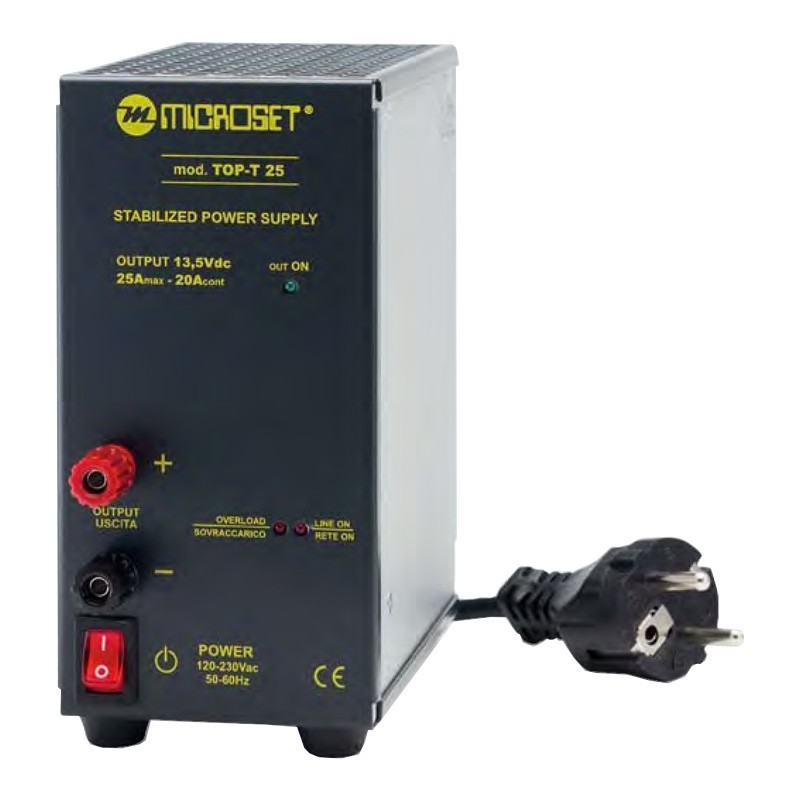

TOP T-25

SWITCHING POWER SUPPLY WITH FIX OUTPUT VOLTAGE: for radio communication and general purpose.
Protections: overload and overtemperature. BLOWER LESS. Continuous service 24h, E.M.I. less.
Universal main ranga 115-230Vac.
VDC out | A out | Size WxDxH (mm) |
---|---|---|
13,5V | 25A max | 79x165x160 |

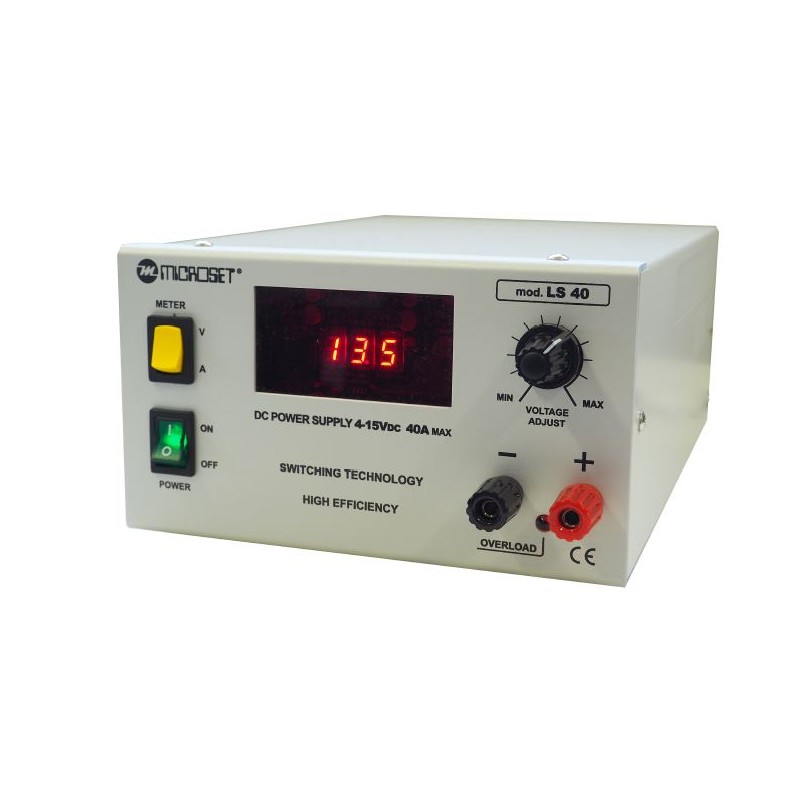

LS 40

SWITCHING POWER SUPPLY WITH VOLTAGE OUTPUT ADJUST: for radio communication and general purpose.
Protections: overload and overtemperature. Blower speed control. Continuous service 24h, no noises emission.
Power IN 230Vac (opt. 110Vac-60Hz).
VDC out | A out | Size WxDxH (mm) |
---|---|---|
4 - 15V | 40A | 165x255x100 |

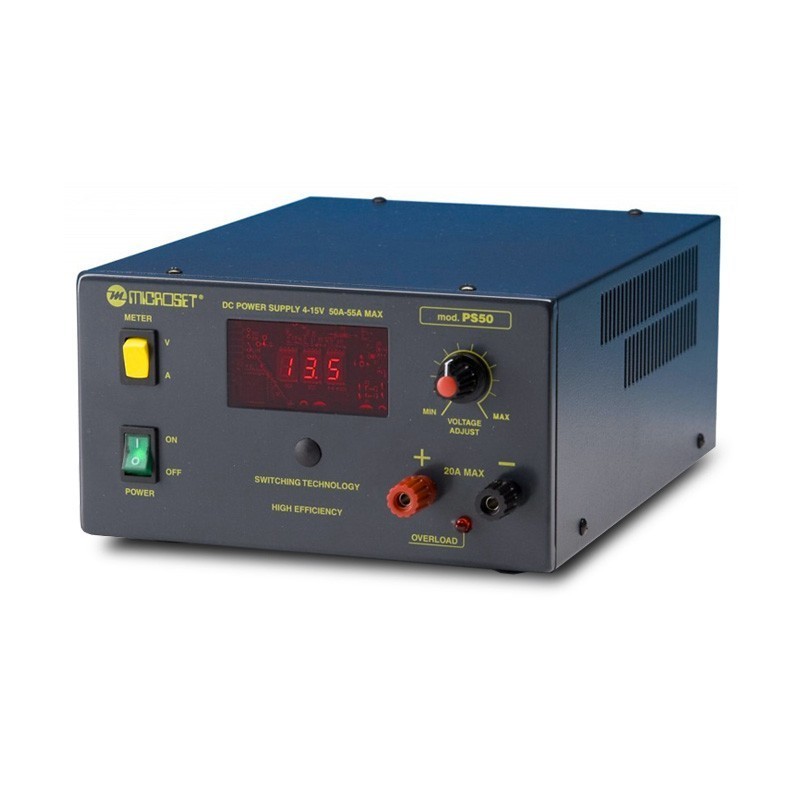

PS 50

SWITCHING POWER SUPPLY WITH VOLTAGE OUTPUT ADJUST: for radio communication and general purpose.
Protections: overload and overtemperature. Blower speed control. Continuous service 24h, no noises emission.
Power IN 230Vac (opt. 110Vac-60Hz).
VDC out | A out | Size WxDxH (mm) |
---|---|---|
4 - 15V | 55A | 190x260x110 |

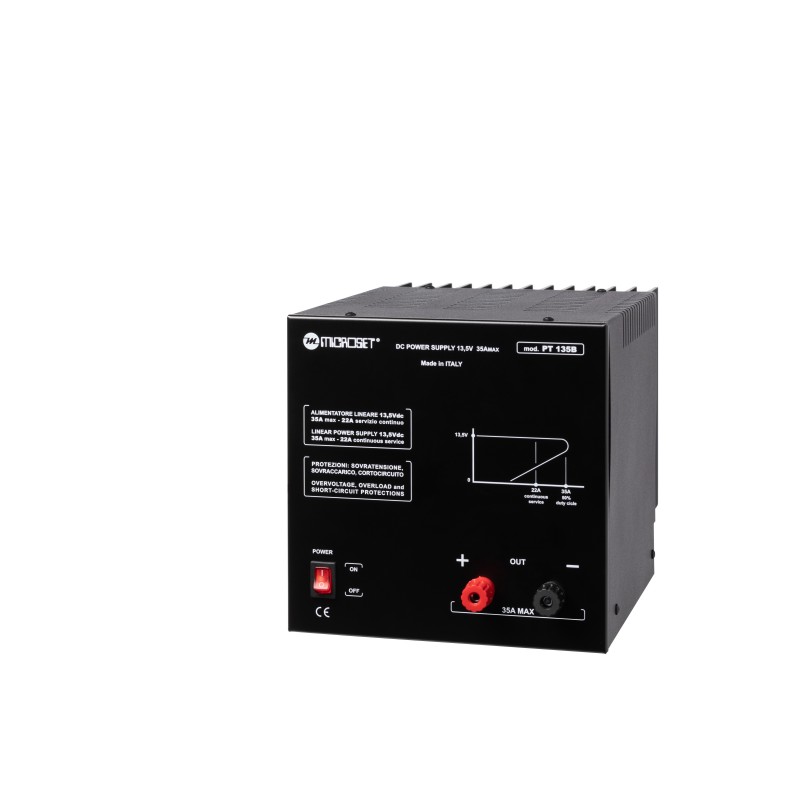

PT 135B

LINEAR POWER SUPPLY WITH FIX OUTPUT VOLTAGE: for radio communication application.
Protections: overload and overvoltage. Very low ripple. No fan.
Power IN 230Vac-50Hz.
VDC out | A out | Size WxDxH (mm) |
---|---|---|
13,5V | 35A | 185x300x190 |
PC 30 D

LINEAR POWER SUPPLY WITH ADJUSTABLE OUTPUT VOLTAGE: for radio communications and general purpose.
Protections: overload and overvoltage, no noises emission.
Power IN 230Vac-50Hz.
VDC out | A out | Size WxDxH (mm) |
---|---|---|
5 - 15V | 30A | 185x260x170 |
LTS 150

LINEAR POWER SUPPLY WITH ADJUSTABLE OUTPUT VOLTAGE: for radio communications and general purpose.
Protections: overload and overvoltage, no noises emission.
Power IN 230Vac-50Hz.
VDC out | A out | Size WxDxH (mm) |
---|---|---|
13,5V | 55A | 185x260x110 |
Preise
Prod.Nbr. | Product | Price CHF (CH) | Price EUR (rest of EU) |
---|---|---|---|
TOP T-25 | TOP T-25 | 166.- | TBD.-* |
LS 40 | LS 40 | 248.- | TBD.-* |
PS 50 | PS 50 | 228.- | TBD.-* |
PT 135B | PT 135B | 298.- | TBD.-* |
PC 30 D | PC 30 D | 298.- | TBD.-* |
LTS 150 | LTS 150 | 248.- | TBD.-* |
incl. VAT, excl. shipping fees
*excl. 7,7% Swiss und Liechtenstein VAT and shipping fees
FREE shipment for orders over 1000.- CHF (CH only)
